Peloton
DUO
Brief:
Expand Peloton's range of at-home fitness products.
Current Peloton Lineup
Current Peloton products are limited to exercising inside the home, creating an opportunity to upgrade and expand their lineup to ones that can be used outside.
Buyer
Tim (36) and Millie (35) live in San Francisco, California
They strive to maintain a healthy lifestyle on top of corporate jobs
Millie must commute to the office 3 days out of the week.
Millie's ride to work
2.5 miles
Inspiration
Form + Bike Composition
JUMP Bike
electric bike sharing system
-
Integrated Battery
-
Internal Drive Train
-
Front hub motor
-
Predictive shifting
-
One size fits most
-
Non-foldable
-
Larger display
-
- charging stand
-
Smaller display
-
- on bike
Ideation
Initial Brainstorm
Integration
Charging stand ideas, on-bike displays
Charging Systems
Floor charging? Wall? How can the bike remain in place?
Mockups and Insights
Floor charging? Wall? How can the bike remain in place?

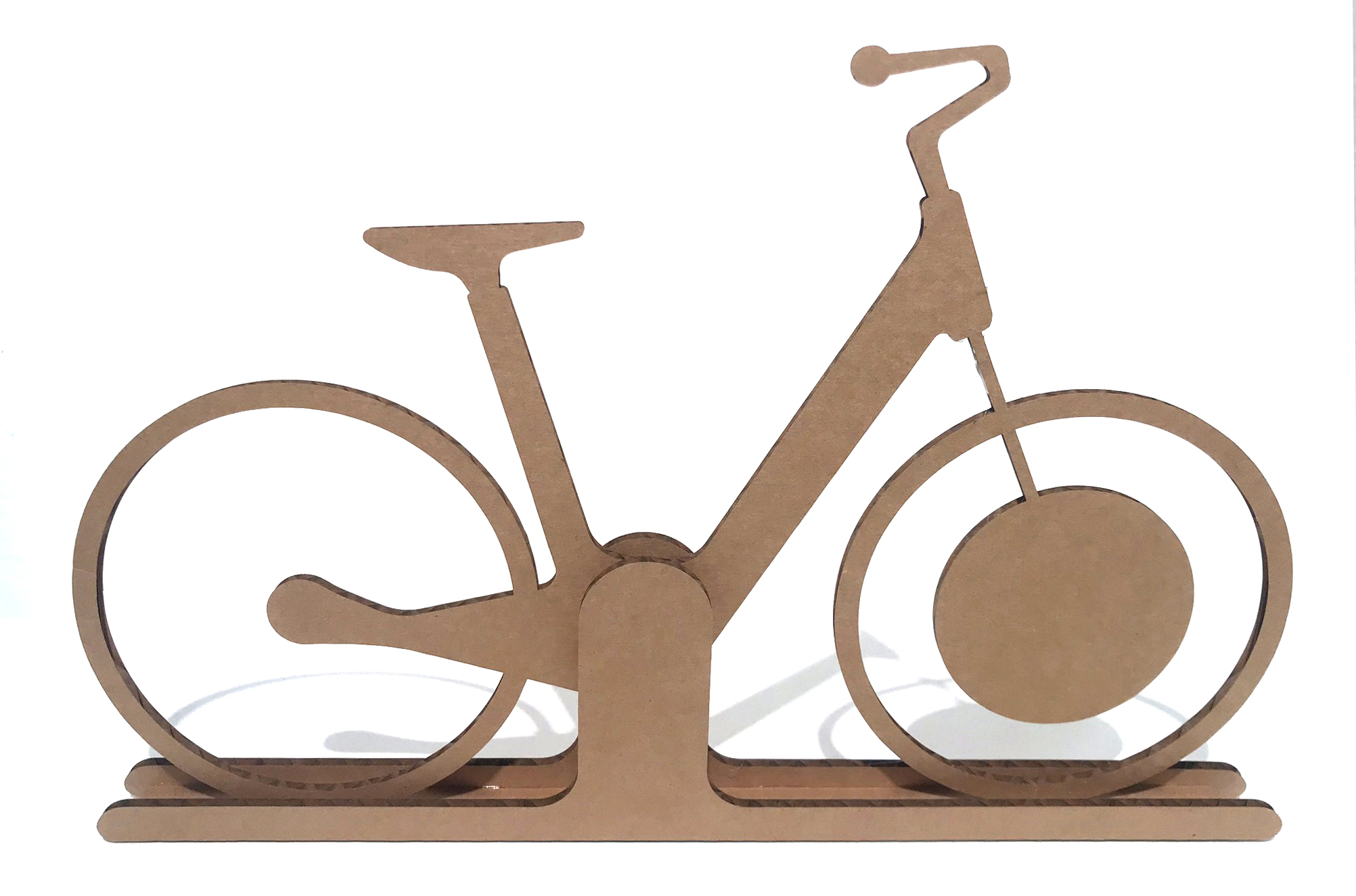

Floor Charging Stand
-
stable place to attach
-
takes up too much floor space
-
where do the pedals go?

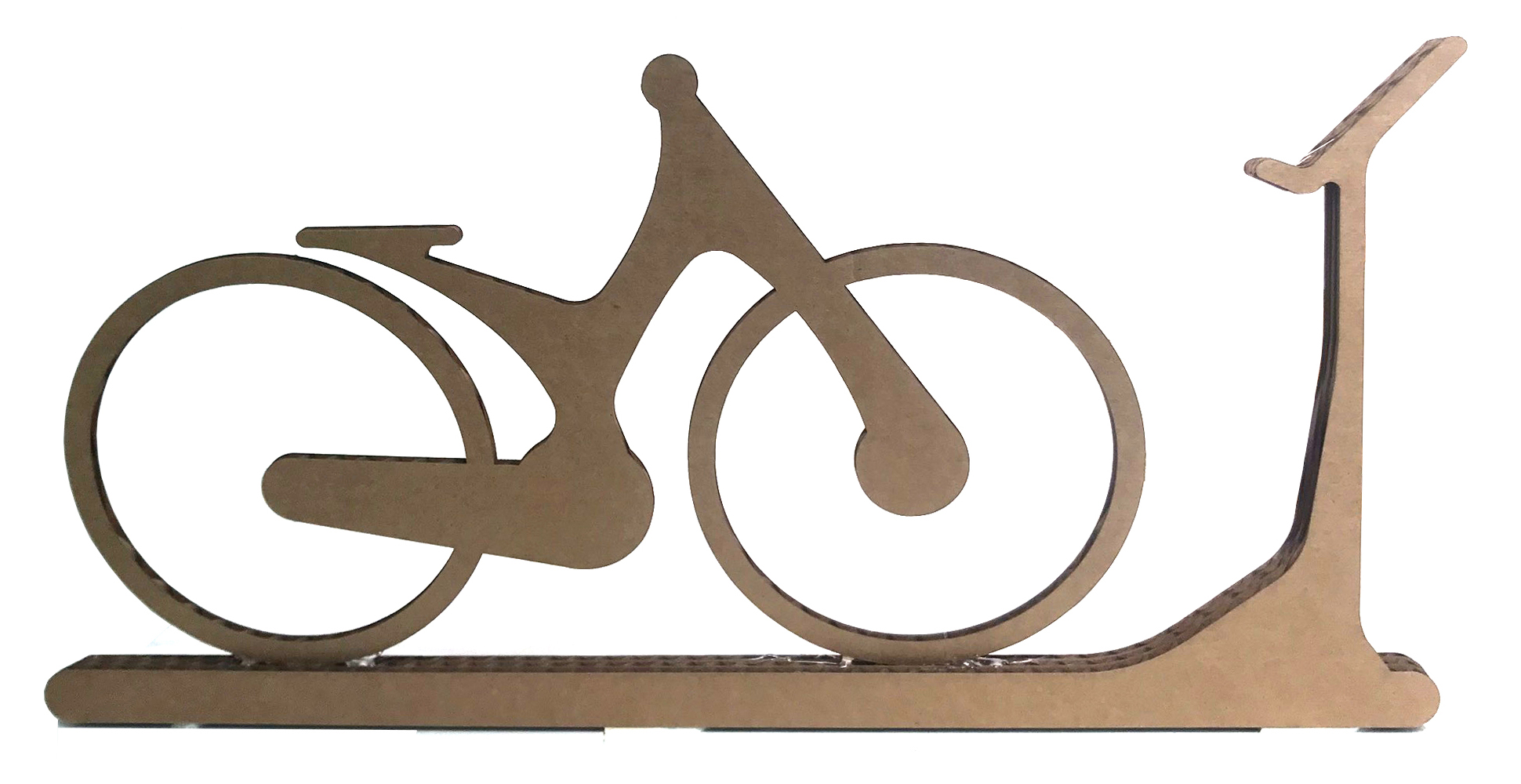

Floor Charging Stand 2
-
unstable mounting points
-
bulky, occupies both floor + wall
-
how does it connect to stand?

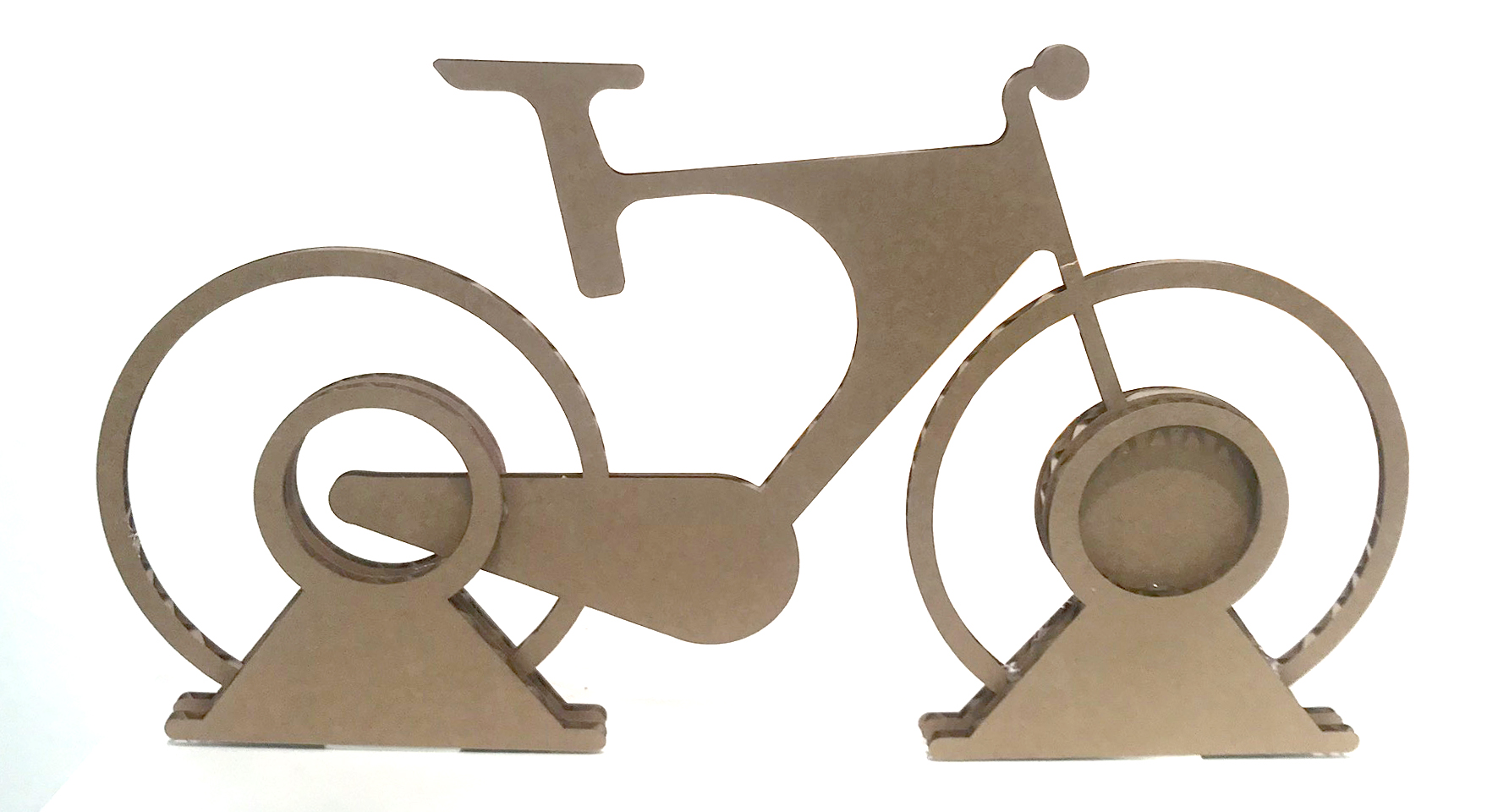

Double Mounts
-
where would the screen go?
-
doesn't work as pair
-
too many parts
Chosen Direction
Wall Mount - Folding Legs
-
minimal floor space
-
bike leans on wall when neither are in use
Inspo from other products
-
wall-mounted arm
-
bike racks + storage
How it Works
Docking
-
Charging stand will recognize bike + lower connecting arms
Charging Stand
-
Arms fold up, display hinges for various exercise postures
2.8 in. OLED display
-
+ bike computer
27 in. OLED display
-
integrated into charging stand
Charging arms
-
contains magnetic contact charging
Battery
-
14ah
Electric motor
-
500 watt
-
dual belt drive
Reflector light
-
+ brake notification
Stop
Go
Lights
electric boost
/resistance knob
Align + roll bike with stand
Stand arms will lower
Charging points will connect
Belt drive engages
Bike is ready to ride stationary
1
2
3
